Construction sites
Underground construction sites
Underground construction sites
Full coverage of the entire area with long range BLE5 detection. Location algorithms to detect location, entries and exits of employees and assets.

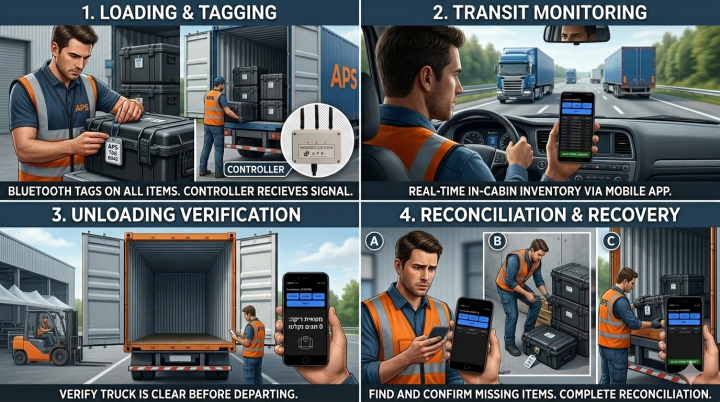

Assets identification during unloading and loading
Underground construction sites
Underground construction sites
Underground construction sites
Controllers connected via BLE5 long range MESH. Enabling accurate location of each employee and assets, Warning upon entry to restricted areas. Duration tracking in dangerous areas which have time limitation
Mining
Tunnels
Tunnels
Employees and assets water proof tags tracking covering all areas. Alerts while employees entering into dangerous areas
Sensors equipped with BLE communication to check operational status of various devices remotely
Tunnels
Tunnels
Tunnels
Eployees tracking all through the tunnel
No need for any wired or wireless ethernet
Plug and play long range BLE5 controllers enabling dynamic relocation during the construction process
Tracking eMployees in the red-line light train Tel-Aviv
Red line stations covered with APS BLE tracking system-Fully operational since 2019
Simple installation, only power required, no ethernet communication
Automatic connectivity among controllers, skipping disfunctional controllers, various RTLS algorithms (e.g triangulation)
System structure
30 controllers in each station, each controller connected only to power and connected to the controllers network via BLE5. Each controller scans the employee tags and transmits the data among the Mesh controllers up to uploading to cloud via modem.

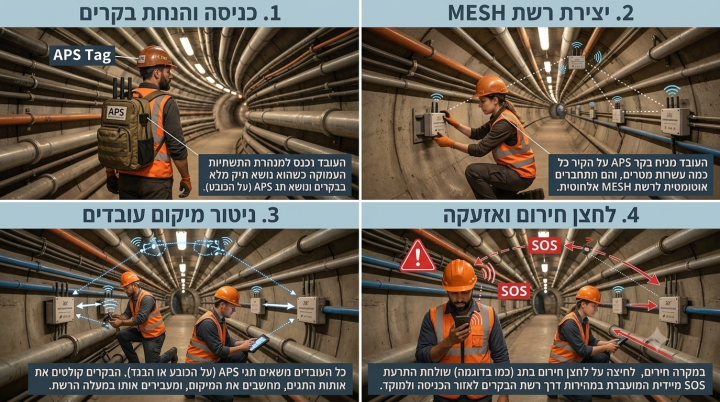

Employees tracking in tunnels
Employees tracking in tunnels dozens of km long
Up to 800 m. between controllers
Severe conditions
Controller installed in IP65 enclosure
Robust for construction sites
Explosion safe option

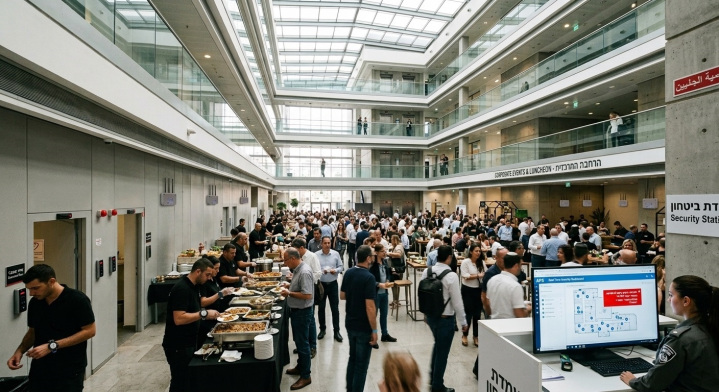

Indoor RTLS (Real Time location system)
Office buildings
Monitoring location of employees or guests
Assets tracking - easy to find where is the projector or other critical items
Only electricity connection require - no need to ethernet or wifi
No need to use the organization network
System configuration

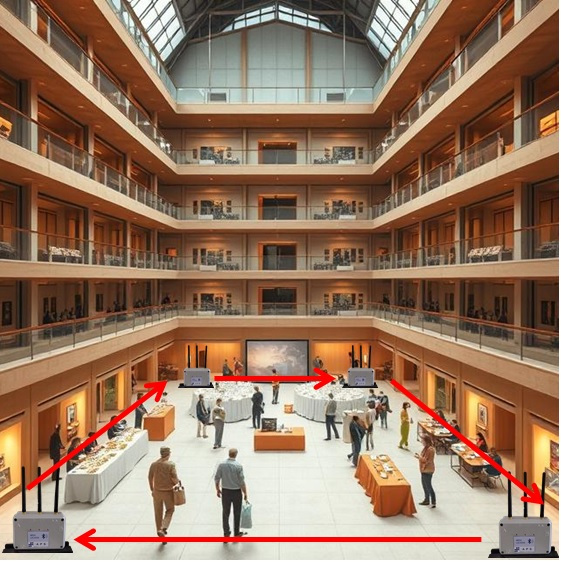

Scanning controllers in designated areas and rooms to cover tracking of emloyees, guests or assets inside or outside the building
Gate Control to construction sites
Gate control enabling only BLE tag carriers
Detecion of entry or exit
Option to check various certificates real time (e.g. Working at Height )
Controllers and Tags
BLE MESH Controllers
BLE4 and BLE5 long range tags
Low Power BLE Mesh readers
BLE5 long range Mesh controller
Up to 800m between each, enabling full coverage of wide areas
Optios for relay activation at each node
Counter indication of assets/employees at each room
Low Power BLE Mesh readers
BLE4 and BLE5 long range tags
Low Power BLE Mesh readers
Low Power long range controllers
Transffering BLE tags scanning from long distance via BLE5 mesh network
Controllers can be connected to rechageable battery and solar pannel
BLE4 and BLE5 long range tags
BLE4 and BLE5 long range tags
BLE4 and BLE5 long range tags
Various size and shape
Waterproof
Optional customization
